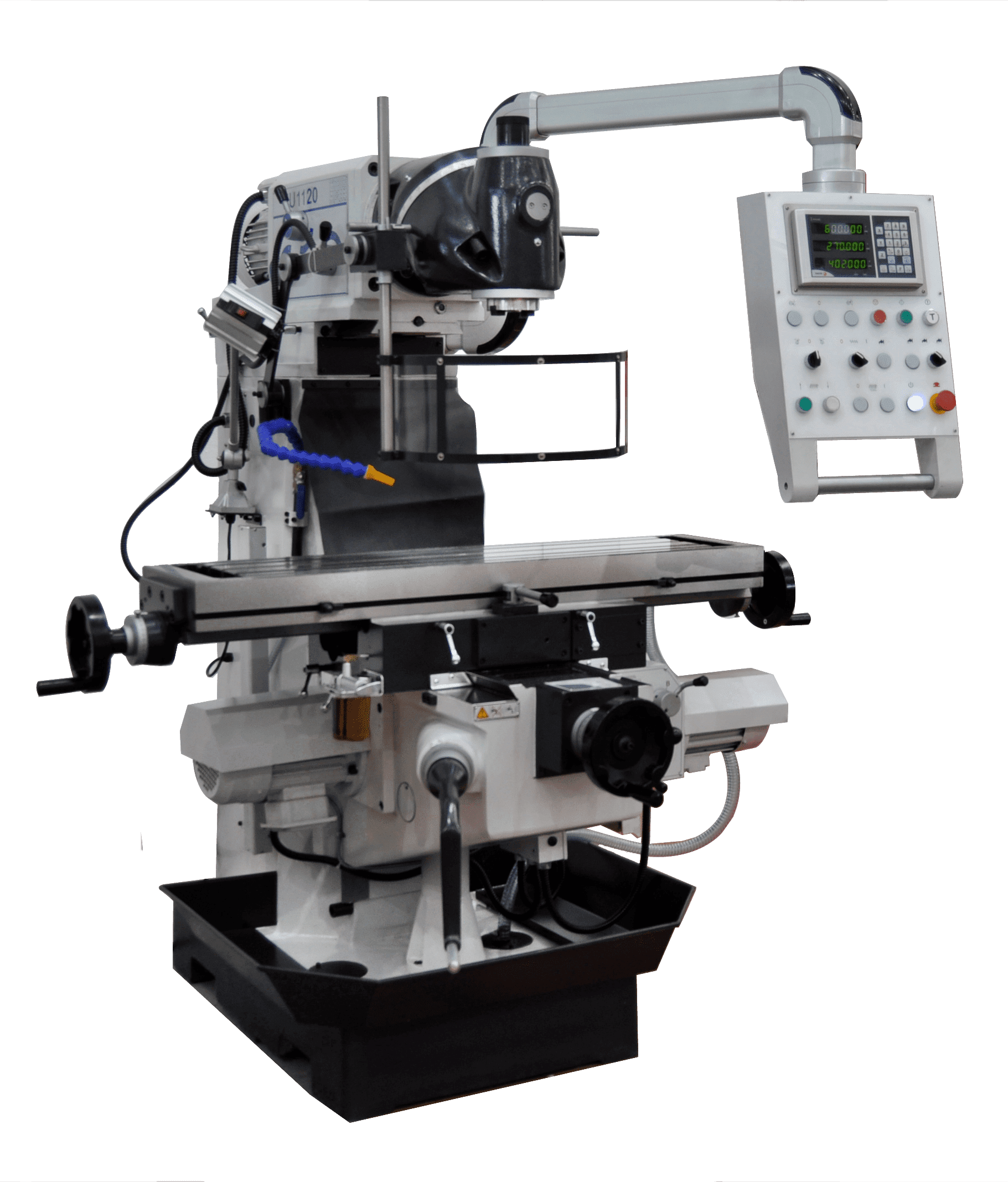

Universal milling machine FU-1120
Universal milling machine with hardened guides, adjustable head, complete cooling system, chip collection tray, automatic and rapid feed on X / Y axes,
motorized table approach and centralized lubrication.
| WORK SURFACE | 1120x260 |
| Number of T-slots (mm) | 3 X 14 |
| LONGITUDINAL (MM) | 600 |
| TRANSVERSAL (MM) | 270 |
| VERTICAL (MM) | 402 |
| Longitudinal speed (mm/min) | 720 |
| Table feed range (mm/min) | 8 from 24 to 720 |
| LON ADVANCES RANGE. TABLE (MM/MIN) | 8 FROM 24 TO 720 |
| VERTICAL DISPLACEMENT OF THE TABLE | MOTORIZED |
| MIN/MAX DISTANCE VERTICAL SPINDLE-TABLE (MM) | 0 - 440 |
| Maximum weight allowed | 275 |
| SPINDLE SPEED RANGE (RPM) | 35 to 1600 |
| PUSSY | ISO40 |
| MAIN ENGINE POWER (KW) | 2.2 Kw/3 HP |
| VOLTAGE | 380-400V/50Hz |
| DIMENSIONS (MM) | 1650x1600x2000 |
| WEIGHT (Kg) | 1360 |
DETAILS
Tags: Fresadoras, Fresadoras Convencionales, Maquinaria
Weight: 1360.0 kg
Vendor: helferindustrial
