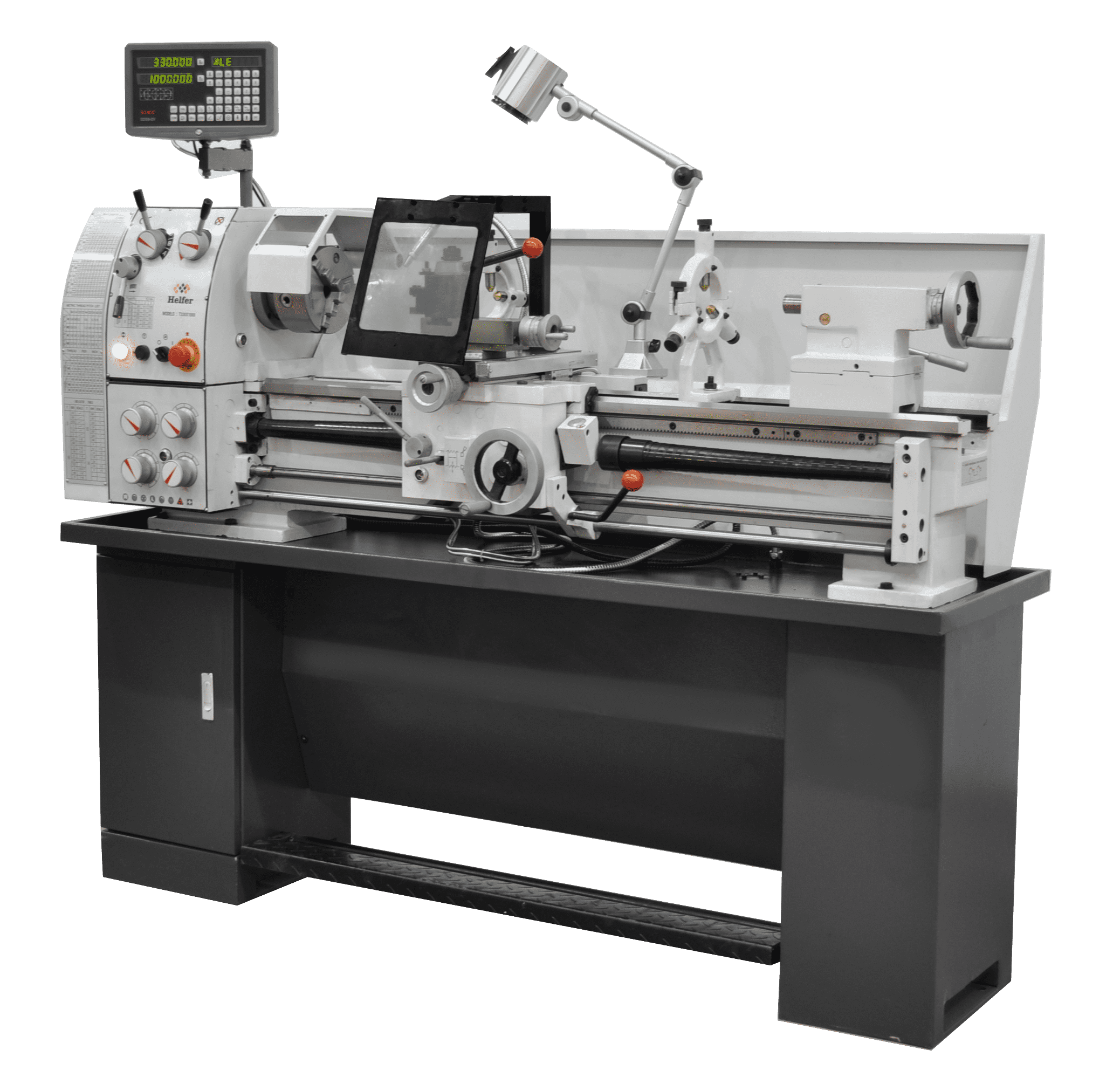

Helfer T330x1000 Lathe
HELFER lathes are synonymous with quality machines thanks to their design and manufacturing based on
experience and innovation.
| MAX. DIAM. OVER BENCH (MM) | 330 |
| MAX. DIAM. OVER CARRIAGE (MM) | 180 |
| DISTANCE BETWEEN POINTS | 1080 |
| DIAMETER ALLOWED ON NECKLINE (MM) | 470 |
| NECKLINE LENGTH (MM) | 230 |
| BED WIDTH | 180 |
| SPINDLE NOSE (MM) | CAMLOCK No. 4 |
| SPINDLE HOLE (MM) | 38 |
| Spindle bore taper | CM5 |
| SPINDLE SPEED RANGE (RPM) | 65-1810 |
| TAILSTOCK SHANK CONE | CM3 |
| METRIC STEPS (MM) | 0.4-7 |
| WHITWORTH STEPS IN THREADS BY ' | 4-60 TPI |
| LONGITUDINAL FEED RANGE (MM/REV.) | 0.0527-1.2912 |
| TRANSVERSE FEED RANGE (MM/REV.) | 0.011 - 0.276 |
| CROSS CARRIAGE ROUTE | 130 |
| Chariot route | 75 |
| MAX. TRAVEL OF THE TAILSTOCK SHANK (MM) | 100 |
| Maximum Tool Section | 16x16 |
| VOLTAGE (V) | 380-400V/50 Hz |
| DIMENSIONS (MM.) | 1860 x 750 x 1396 |
| WEIGHT (KG) | 621 |
